MX-300

300 GALLON BATCH MIXING SYSTEM

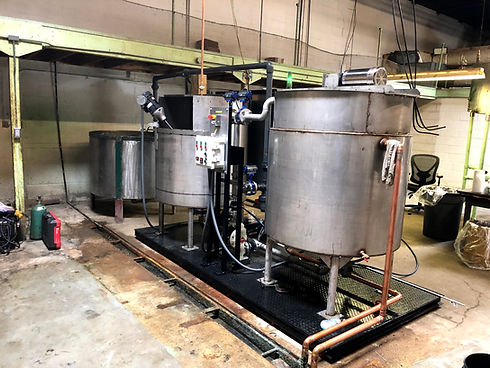

THE MX-300 IS A CUSTOM BATCH MIXING SYSTEM DESIGNED TO CREATE MACHINE LUBRICANTS. WE WORKED WITH THE CUSTOMER TO UNDERSTAND THE PROPRIETARY PROCESS AND CHEMICAL TREATMENT INVOLVED IN ORDER TO DEVELOP A SKID-BASED SOLUTION THAT OFFERS MODULARITY TO ITS DESIGN. TWO 316 STAINLESS STEEL TANKS WERE FABRICATED, PROCESS PLUMBING WITH PNEUMATIC VALVES WAS INSTALLED, AND A DIAGPHAM PUMP WAS NEATLY PLACED TO ALLOW FOR EASY MAINTENANCE. THE SYSTEM HAS A HEATED REACTOR VESSEL WITH A VFD CONTROLLED PADDLE MIXER. THERE IS ALSO A SLURRY TANK WITH A CLAMP MOUNT MIXER. AN OPERATOR PANEL ALLOWS THE USER TO SET WHICH VALVE CONFIGURATION IN ACTIVE, TURN THE MIXERS/PUMP ON AND OFF, AND MONITOR TEMOERATURE AND TIME OF THE BATCH. EVERYTHING ON THE SKID IS WASHDOWN GRADE, GIVING THE USER THE ABILITY TO KEEP THE EQUIPMENT CLEAN AND PREVENT CONTAMINATION OF FUTURE PRODUCTION RUNS.
